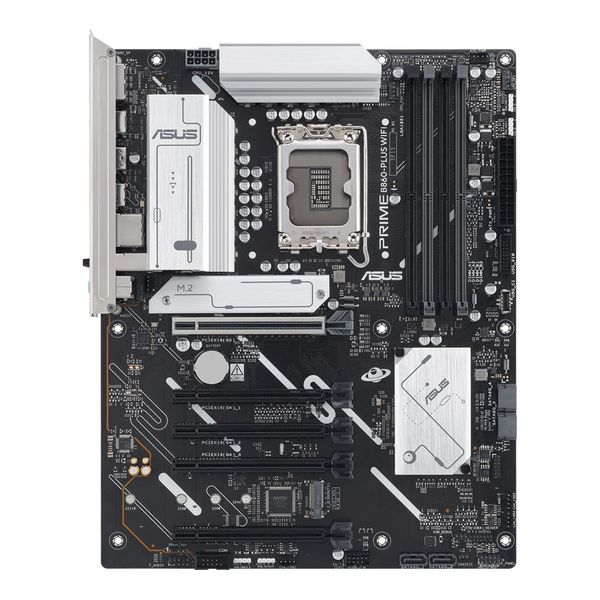

ASUS PRIME B860-PLUS WIFI

ASUS PRIME B860-PLUS WIFI * ATX Form Factor CPU: Support Intel® Core™ Ultra Processors (Series 2) - LGA1851, Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 Chipset: Intel® B860 Chipset Pamäť: 4 x sloty DIMM, max. 192 GB, DDR5 - Podpora až 8200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM) *Dvojkanálová pamäťová architektúra *DIMM Fit *Podporuje pamäťový modul Intel® Extreme Memory Profile (XMP) *ASUS Enhanced Memory Profile III (AEMP III) Grafické porty: *1 x DisplayPort *1 x HDMI™ port Rozširujúce sloty: Intel® Core™ Ultra Processors (Series 2) *1 x PCIe 5.0 x16 slot Intel® B860 Chipset *1 x PCIe 4.0 x16 slot (supports x4 mode) *3 x PCIe 4.0 x16 slots (support x1 mode) Úložný priestor: Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel® Core™ Ultra Processors (Series 2) *M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset *M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) *4 x SATA 6Gb/s ports Ethernet: *1 x Realtek 2.5Gb Ethernet *ASUS LANGuard Pripojenie a Bluetooth: *Wi-Fi 6E *2x2 Wi-Fi 6E (802.11ax) *Supports 2.4/5/6GHz frequency band *Bluetooth® v5.3 USB: Zadné USB (Total 7 ports) *1 x USB 20Gbps port (1 x USB Type-C®) *2 x USB 10Gbps ports (2 x Type-A) *1 x USB 5Gbps port (1 x Type-A) *4 x USB 2.0 ports (4 x Type-A) Predné USB (Total 7 ports) *1 x USB 5Gbps port (1 x USB Type-C®) *1 x USB 5Gbps header supports additional 2 USB 5Gbps ports *1 x USB 2.0 header supports 2 additional USB 2.0 ports Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC *Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking *Supports up to 24-Bit/192 kHz playback Audio Features *Audio Shielding *Premium audio capacitors *Dedicated audio PCB layers Vstupy/výstupy zadného panela: *1 x USB 20Gbps port (1 x USB Type-C®) *2 x USB 10Gbps ports (2 x Type-A) *1 x USB 5Gbps port (1 x Type-A) *4 x USB 2.0 ports (4 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Wi-Fi module *1 x Realtek 2.5Gb Ethernet port *3 x Audio jacks Interné vstupy/výstupy: Ventilátory a chladenie: *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *4 x 4-pin Chassis Fan headers Napájanie: *1 x 24-pin Main Power connector *1 x 8-pin +12V CPU Power connector Úložisko: *2 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 5Gbps connector (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *1 x USB 2.0 header supports 2 additional USB 2.0 ports Rôzne: *3 x Addressable Gen 2 headers *1 x Aura RGB header *1 x Clear CMOS header *1 x Chassis Intrusion header *1 x COM Port header *1 x Front Panel Audio header (F_AUDIO) *1 x S/PDIF Out header *1 x SPI TPM header (14-1pin) *1 x 10-1 pin Front System Panel header *1 x Thunderbolt™ (USB4®) header Príslušenstvo: Káble: *2 x SATA 6Gb/s cables Rôzne: *1 x ASUS WiFi Q-Antenna *1 x M.2 rubber package *1 x Screw package for M.2 SSD Dokumenty: *1 x Quick start guide
