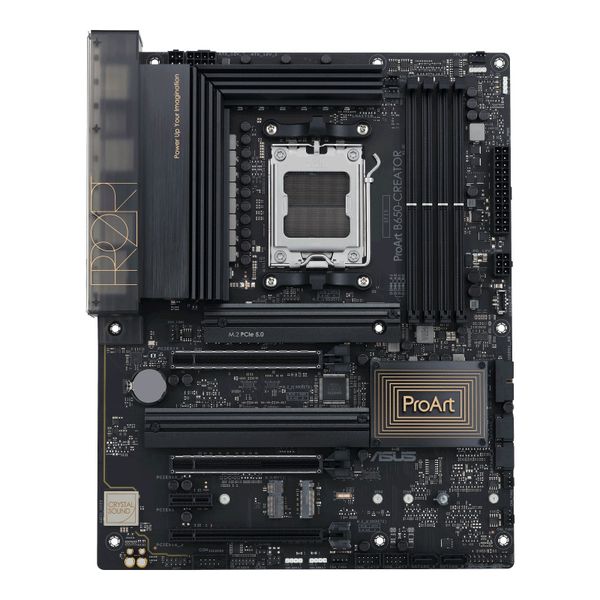

Asus ProArt B650-CREATOR/AM5/ATX

Chipset: AMD B650 Rozměrový formát: ATX Form Factor (30.5 cm x 24.4 cm) Podpora pro procesory: AMD Ryzen 7000 Series Desktop Processors Patice procesoru: AM5 Pozice na paměti: 4 x DIMM, Dual Channel Memory Architecture Podpora pro paměti: DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 MHz Max.velikost operační paměti: 128 GB Podpora pro paměti typu: ECC, Non-ECC Grafické výstupy: (na základě procesoru) *1 x DisplayPort (Input only) *1 x HDMI port *1 x USB Type-C Zvuková karta: Realtek 7.1 Surround Sound High Definition Audio CODEC *Podpora S/PDIF out port Síťová karta: *1 x Realtek 2.5Gb Ethernet *1 x Realtek 1Gb Ethernet Rozšiřující sloty: *2 x PCIe 4.0 x16 slots (support x16 or x8/x8 modes) *1 x PCIe 4.0 x16 slot (supports x4 mode) *1 x PCIe 4.0 x1 slot RAID řadič: RAID 0/1/10 SATA: 4 x SATA 6Gb/s ports M.2: 3 x M.2 slots USB: *Interní: *1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) *1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports *Externí: *1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output ) *4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) *2 x USB 2.0 ports (2 x Type-A) Interní porty: *I/O ConnectorsFan and Cooling related *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *4 x 4-pin Chassis Fan headers *Power related *1 x 24-pin Main Power connector *1 x 8-pin +12V Power connector *1 x 4-pin +12V Power connector *1 x 6-pin PCIe Power connector *Storage related *3 x M.2 slots (Key M) *4 x SATA 6Gb/s ports *USB *1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) *1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports *Miscellaneous *3 x Addressable Gen 2 headers *1 x Aura RGB header *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (AAFP) *1 x M.2 slot (Key E) *1 x 20-5 pin System Panel header *1 x Thermal Sensor header *1 x Thunderbolt (USB4) header Externí porty: *1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output ) *4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) *2 x USB 2.0 ports (2 x Type-A) *1 x DisplayPort (Input only) *1 x HDMI port *1 x Realtek 2.5Gb Ethernet *1 x Realtek 1Gb Ethernet *5 x Audio jacks *1 x Optical S/PDIF out port *1 x BIOS FlashBack button BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
