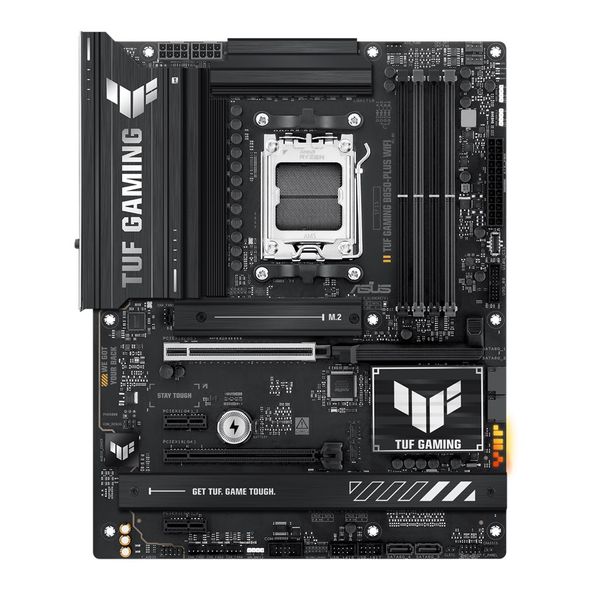

ASUS TUF GAMING B850-PLUS WIFI

ASUS TUF GAMING B850-PLUS WIFI * ATX Form Factor CPU: AMD Socket AM5 pre AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Chipset: AMD B850 Chipset Pamäť: *4 x sloty DIMM, max. 192 GB, DDR5 - Podporuje až 8000+MT/s (OC) s procesormi Ryzen™ rady 9000 a 8000 a 7000, ECC a Non-ECC Un-buffered DIMM *Dvojkanálová pamäťová architektúra *Podpora rozšírených profilov AMD pre pretaktovanie (EXPO™) *ASUS Enhanced Memory Profile (AEMP) Grafické porty: *1 x DisplayPort *1 x HDMI™ port Rozširujúce sloty: AMD Ryzen™ 9000 & 7000 Series Desktop Processors *1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors *1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B850 Chipset *1 x PCIe 4.0 x16 slot (supports x4 mode) *2 x PCIe 4.0 x1 slots Úložný priestor: Total Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors *M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) *M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors *M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset *M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *4 x SATA 6Gb/s ports Ethernet: *1 x Realtek 2.5Gb Ethernet *TUF LANGuard Pripojenie a Bluetooth: *Wi-Fi 7 *2x2 Wi-Fi 7 (802.11be) *Supports 2.4/5/6GHz frequency band** *Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate *Bluetooth® v5.4*** USB: Zadné USB (Total 10 ports) *1 x USB 20Gbps port (1 x USB Type-C®) *3 x USB 10Gbps ports (3 x Type-A) *4 x USB 5Gbps ports (4 x Type-A) *2 x USB 2.0 ports (2 x Type-A) Predné USB (Total 7 ports) *1 x USB 10Gbps connector (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio: Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC *Audio Shielding *Premium audio capacitors *Dedicated audio PCB layers *Audio cover *Unique de-pop circuit Vstupy/výstupy zadného panelu: *1 x USB 20Gbps port (1 x USB Type-C®) *3 x USB 10Gbps ports (3 x Type-A) *4 x USB 5Gbps ports (4 x Type-A) *2 x USB 2.0 ports (2 x Type-A) *1 x DisplayPort *1 x HDMI™ port *1 x Wi-Fi module *1 x Realtek 2.5Gb Ethernet port *5 x Audio jacks *1 x BIOS FlashBack™ button Interné vstupy/výstupy: Ventilátory a chladenie: *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *4 x 4-pin Chassis Fan headers Napájanie: *1 x 24-pin Main Power connector *2 x 8-pin +12V CPU Power connectors Úložisko: *3 x M.2 slots (Key M) *4 x SATA 6Gb/s ports USB: *1 x USB 10Gbps connector (supports USB Type-C® ) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Rôzne: *3 x Addressable Gen 2 headers *1 x Clear CMOS header *1 x Chassis Intrusion header *1 x COM Port header *1 x Front Panel Audio header (F_AUDIO) *1 x 10-1 pin Front System Panel header *1 x Thunderbolt™ (USB4®) header Príslušenstvo: Káble: *2 x SATA 6Gb/s cables Rôzne: *1 x ASUS WiFi Q-Antenna *1 x TUF GAMING sticker *2 x M.2 rubber packages Dokumenty: *1 x Quick start guide
