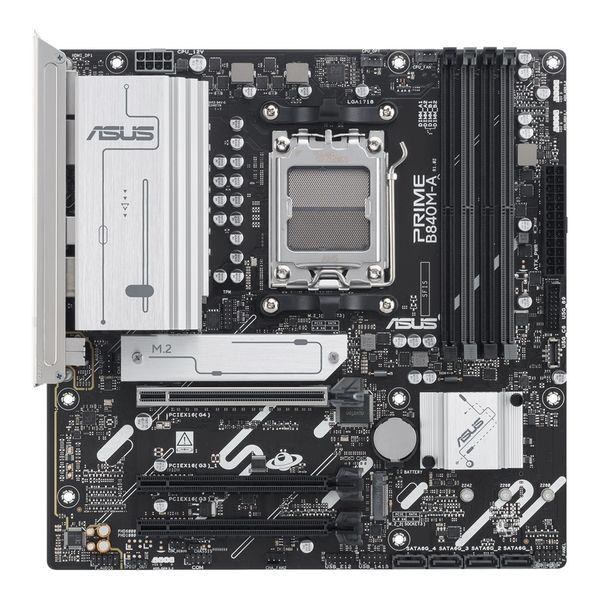

ASUS prime B840M-A-CSM

ASUS PRIME B840M-A * mATX Form Factor CPU: AMD Socket AM5 pre AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors Chipset: AMD B840 Chipset Pamäť: 4 x DIMM sloty, max. 192GB, DDR5 - Podpora až 7600+MT/s (OC) s procesormi Ryzen™ radu 9000 a 8000 a 7000, ECC a Non-ECC, nevyrovnávacie pamäte DIMM Grafické porty: *2 x DisplayPort *1 x HDMI™ port Rozširujúce sloty: AMD Ryzen™ 9000 & 7000 Series Desktop Processors *1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors *1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B840 Chipset *2 x PCIe 3.0 x16 sloty (support x1 mode) Úložný priestor: Total supports 3 x M.2 sloty a 4 x SATA 6Gb/s porty AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors *M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) *M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B840 Chipset *M.2_3 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode) *4 x SATA 6Gb/s porty Ethernet: *1 x Realtek 2.5Gb Ethernet *ASUS LANGuard USB: Zadné USB (Total 7 ports) *2 x USB 10Gbps porty (2 x Type-A) *1 x USB 5Gbps port (1 x USB Type-C®) *4 x USB 2.0 porty (4 x Type-A) Predné USB (Total 7 ports) *1 x USB 5Gbps connector (supports USB Type-C®) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC* *Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking *Supports up to 24-Bit/192 kHz playback Audio Features *Audio Shielding *Premium audio capacitors *Dedicated audio PCB layers Vstupy/výstupy zadného panelu: *2 x USB 10Gbps porty (2 x Type-A) *1 x USB 5Gbps port (1 x USB Type-C®) *4 x USB 2.0 porty (4 x Type-A) *2 x DisplayPort *1 x HDMI™ port *1 x Realtek 2.5Gb Ethernet port *3 x Audio jacky *1 x BIOS FlashBack™ button Interné vstupy/výstupy: Ventilátory a chladenie: *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *2 x 4-pin Chassis Fan headers Napájanie: *1 x 24-pin Main Power connector *1 x 8-pin +12V CPU Power connector Úložisko: *3 x M.2 sloty (Key M) *4 x SATA 6Gb/s porty USB: *1 x USB 5Gbps connector (supports USB Type-C® ) *1 x USB 5Gbps header supports 2 additional USB 5Gbps ports *2 x USB 2.0 headers support 4 additional USB 2.0 ports Rôzne: *3 x Addressable Gen 2 headers *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (F_AUDIO) *1 x S/PDIF Out header *1 x SPI TPM header (14-1 pin) *1 x 10-1 pin Front System Panel header Príslušenstvo: Káble: *2 x SATA 6Gb/s cables Rôzne: *1 x M.2 rubber package *3 x Screw packages for M.2 SSD Dokumenty: *1 x Quick start guide
