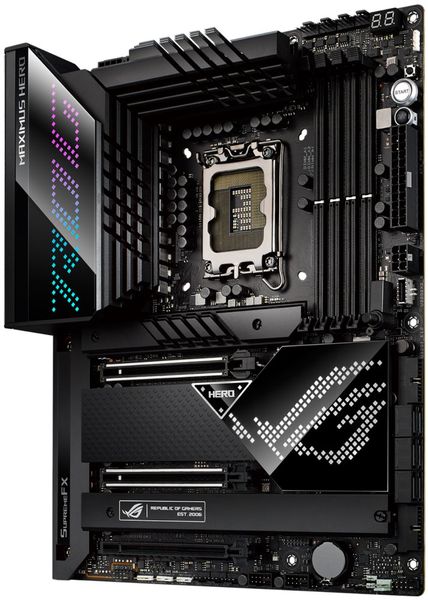

ASUS ROG MAXIMUS Z690 HERO/LGA 1700/ATX Základní deska, Intel Z690, LGA1700, 4x DDR5 DIMM (max. 128GB), 3x M.2 + 2x M.2 rozšiřující karta, Wi-Fi, HDMI, 2x Thunderbolt 4,

Chipset: Z690 Rozměrový formát: ATX Podpora pro procesory: 12th Gen Intel Core, Pentium Gold and Celeron Processors Patice procesoru: Intel Socket LGA1700 Pozice na paměti: 4 x DIMM Podpora pro paměti: *DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MT/s Non-ECC, Un-buffered Memory Max.velikost operační paměti: 128GB Podpora pro paměti typu: *DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 MT/s Non-ECC, Un-buffered Memory *Dual Channel Memory Architecture *Supports Intel Extreme Memory Profile (XMP) Grafické výstupy: *1 x HDMI port *2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs Zvuková karta: *ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 Síťová karta: *1 x Intel 2.5Gb Ethernet *Intel Wi-Fi 6E Rozšiřující sloty: Intel 12th Gen Processors: *2 x PCIe 5.0 x16 slots (support x16 or x8/x8 modes) Intel Z690 Chipset: *1 x PCIe 4.0 x16 slot (supports x4, x4/x4 modes) RAID řadič: NVMe RAID 0/1/5, SATA RAID 0/1/5/10 SATA: *6 x SATA 6Gb/s ports M.2: *5 x M.2 slots USB: *zadní USB porty ( celkem 11 ) *2 x Thunderbolt 4 ports (2 x USB Type-C) *7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C) *2 x USB 2.0 ports (2 x Type-A) *přední USB porty ( celkem 9 ) *1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) *2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 4 USB 2.0 ports Interní porty: *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *4 x 4-pin Chassis Fan headers *1 x W_PUMP+ header *1 x 2-pin Water In header *1 x 2-pin Water Out header *1 x 3-pin Water Flow header *1 x 24-pin Main Power connector *2 x 8-pin +12V Power connector *1 x 6-pin PCIe Graphics Card connector *3 x M.2 slots (Key M) *6 x SATA 6Gb/s ports *1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) *2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports *2 x USB 2.0 headers support additional 4 USB 2.0 ports *3 x Addressable Gen 2 headers *1 x AURA RGB header *1 x FlexKey button *1 x Front Panel Audio header (AAFP) *1 x SPI TPM header (14-1pin) *1 x Start button *1 x ReTry button *1 x 10-1 pin System Panel header *1 x Thermal Sensor header Externí porty: *2 x Thunderbolt 4 USB Type-C ports *7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C) *2 x USB 2.0 ports (2 x Type-A) *1 x HDMI port *1 x Wi-Fi Module *1 x Intel 2.5Gb Ethernet port *5 x Gold-plated audio jacks *1 x Optical S/PDIF out port *1 x BIOS FlashBack button *1 x Clear CMOS button BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Stránka výrobce: https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z690-hero-model/spec
