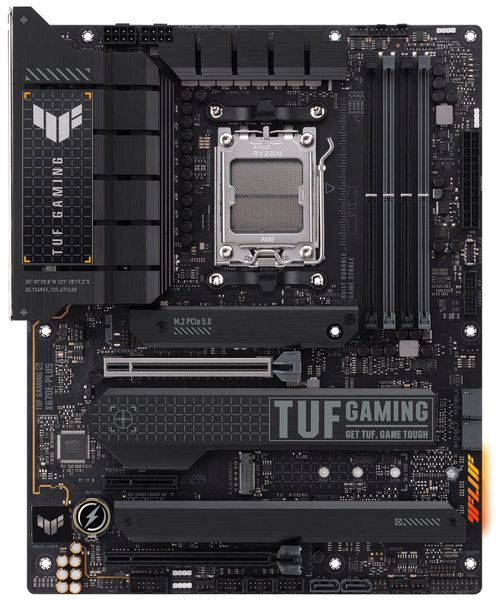

ASUS TUF GAMING X670E-PLUS/AM5/ATX Základná doska, AMD X670, AM5, 4x DDR5 DIMM (max. 128GB), 4x M.2, HDMI, DisplayPort, 2x USB typ C, ATX

Čipová súprava: AMD X670 Rozmerný formát: ATX Form Factor (30,5 cm x 24,4 cm) Podpora pre procesory: AMD Ryzen 7000 Series Desktop Processors Patice procesoru: AM5 Pozície na pamäti: 4 x DIMM, Dual Channel Memory Architecture Podpora pre pamäť: DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 MHz Max. veľkosť operačnej pamäti: 128 GB Podpora pre pamäť typu: ECC, Non-ECC Grafické výstupy: (podľa procesora) *1 x DisplayPort *1 x HDMI port Zvuková karta: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC Sieťová karta: 1 x Realtek 2.5Gb Ethernet Rozširujúce sloty: *1 x PCIe 5.0 x16 slot *1 x PCIe 4.0 x16 slot (supports x4 mode) *1 x PCIe 4.0 x4 slots RAID riaditeľ: RAID 0/1/10 SATA: 4 x SATA 6Gb/s ports M.2: 4 x M.2 slots USB: *Interné: *1 x USB 3.2 Gen 2 connector (supports USB Type-C) *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *3 x USB 2.0 headers support additional 6 USB 2.0 ports *Externé: *1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) *4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C) *5 x USB 3.2 Gen 1 ports (5 x Type-A) Interné porty: *Fan a chladenie súvisiace *1 x 4-pin CPU Fan header *1 x 4-pin CPU OPT Fan header *1 x 4-pin AIO Pump header *4 x 4-pin Chassis Fan headers *1 x W_PUMP+ header *Použitie energie *1 x 24-pin Main Power connector *2 x 8-pin +12V Power connectors *Úložisko súvisiace *4 x M.2 slots (Key M) *4 x SATA 6Gb/s ports *USB *1 x USB 3.2 Gen 2 connector (supports USB Type-C) *1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports *3 x USB 2.0 headers support additional 6 USB 2.0 ports *Rôzne *3 x Addressable Gen 2 headers *1 x AURA RGB header *1 x Clear CMOS header *1 x COM Port header *1 x Front Panel Audio header (AAFP) *1 x 20-3 pin System Panel header with Chassis intrude function *1 x Thermal Sensor header *1 x Thunderbolt header Externé porty: *1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) *4 x USB 3.2 Gen 2 ports (3 x Type-A, 1 x USB Type-C) *5 x USB 3.2 Gen 1 ports (5 x Type-A) *1 x DisplayPort *1 x HDMI port *1 x Realtek 2.5Gb Ethernet port *5 x Audio jacks *1 x BIOS FlashBack button BIOS: UEFI AMI BIOS, 256 Mb Flash ROM
