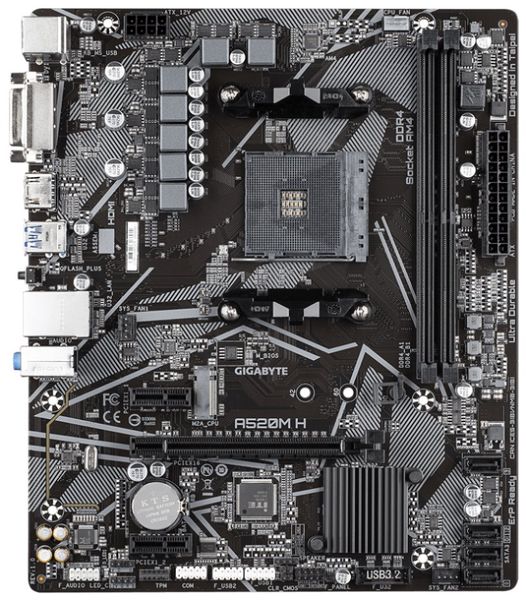

GIGABYTE A520M H/AM4/mATX Základná doska, AMD A520, AM4, 2x DDR4 DIMM (max. 64GB), M.2, HDMI, DVI-D, mATX

Chipset: AMD A520 Rozmerný formát: Micro ATX Form Factor (244 mm x 205 mm) Podpora pre procesory: Support for 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors Patička procesoru: AM4 Pozícia na pamäť: 2x DDR4 DIMM Podpora pre pamäť: *3rd Gen AMD Ryzen™ Processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules *3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules Max. veľkosť operačnej pamäti: 64 GB Podpora pre pamäť typu: DDR4 (Dual Channel) *ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules *non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules *Extreme Memory Profile (XMP) memory modules Grafické výstupy: Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors (na základe CPU) Zvuková karta: *Realtek® ALC887 codec Sieťová karta: *Realtek® GbE LAN chip (1000 Mbit/100 Mbit) Rozširujúce sloty: *1x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 *2x PCI Express x1 slots, supporting PCIe 3.0 RAID riaditeľ: 0, 1, 10 SATA: *4x SATA 6Gb/s connectors M.2: *1x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) USB: *zadné USB porty (celkom 6) *4x USB 3.2 Gen 1 ports *2x USB 2.0/1.1 ports *predné USB porty (celkom 6) *2x USB 3.2 Gen 1 ports *4x USB 2.0/1.1 ports Interné porty: *1x 24-pin ATX main power connector *1x 8-pin ATX 12V power connector *1x CPU fan header *2x system fan headers *1x addressable LED strip header *1x RGB LED strip header *1x M.2 Socket 3 connector *4x SATA 6Gb/s connectors *1x front panel header *1x front panel audio header *1x speaker header *1x USB 3.2 Gen 1 header *2x USB 2.0/1.1 headers *1x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) *1x serial port header *1x chassis intrusion header *1x Clear CMOS jumper Externé porty: *1x PS/2 keyboard/mouse port *1x DVI-D port *1x HDMI port *4x USB 3.2 Gen 1 ports *2x USB 2.0/1.1 ports *1x Q-Flash Plus button *1x RJ-45 port *3x audio jacks BIOS: 1x 128 Mbit flash Stránka výrobcu: https://www.gigabyte.com/Motherboard/A520M-H-rev-10
