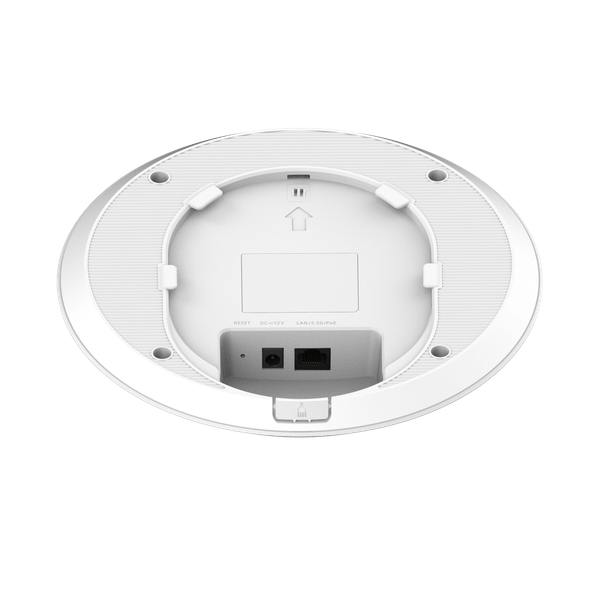

Reyee RG-RAP72, Wi-Fi 7 BE3600 Ceiling-Mount Access Point

• AI-powered Wi-Fi 7 ceiling-mount AP with dual-radio performance
• Support AI Optimization (WIO 3.0)
• Easy installation, compact size
• New circular design, seamlessly blending with different decoration styles
• Tailored for business needs with Reyee Mesh, standalone portal, and AI roaming features

Hardware Specifications

Wi-Fi Radio

Radio design: Dual-radio

  4 spatial streams

? 2.4 GHz: 2 x 2, MU-MIMO

? 5 GHz: 2 x 2, MU-MIMO

Maximum wireless data rate: 3570 Mbps

6 GHz wireless data rate: No

5 GHz wireless data rate: 2882 Mbps

2.4 GHz wireless data rate: 688 Mbps

Antenna

Antenna

• • 2.4 GHz: 2 built-in omnidirectional antennas
  • 5 GHz: 3 built-in omnidirectional antennas

Dimensions and Weight

Product dimensions (diameter x height): O195 mm x 41 mm (O7.68 in. x 1.61 in.) (excluding the mounting bracket)

Color: White

Weight: ≤ 0.6 kg (1.32 lbs.) (without packaging materials)

Port Specifications

Number of 10/100/1000/2500BASE-T ports: 1

Power Supply and Consumption

Power supply:

? DC power adapter

? PoE/PoE+

Note: If both the DC power adapter and PoE/PoE+ are available for power supply, the DC power adapter is preferred.

Local power supply: Yes, one DC power connector (12 V, 1.5 A)

Dimensions of the DC connector

• • Outer diameter: 5.5 mm (0.22 in.)
  • Inner diameter: 2.1 mm (0.08 in.)
  • Depth: 10 mm (0.39 in.)

PoE budget: No

Maximum power consumption: 14 W

Environment and Reliability

Operating temperature: 0°C to 40°C (32°F to 104°F)

Mounting options: Ceiling/Wall

IP rating: IP41

Software Specifications

WLAN

Maximum number of associated wireless clients:

• • 64 (2.4 GHz)
  • 511 (5 GHz)
  • 511 (2.4 GHz and 5 GHz enabled)

Maximum number of devices that can be managed: 300

IP Service

IPv6: Yes
