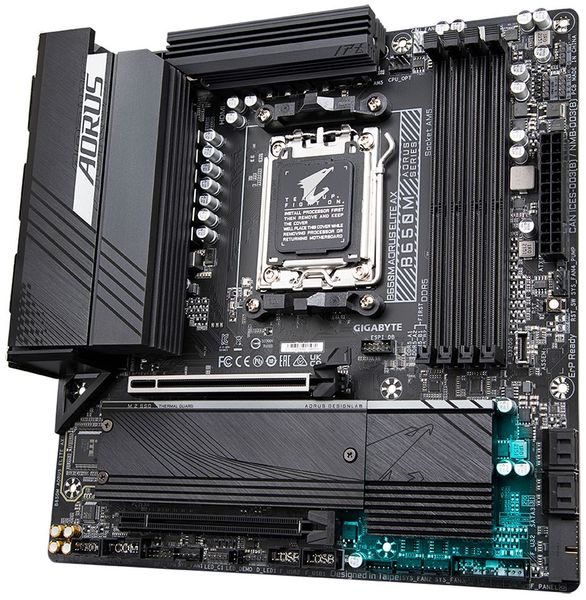

GIGABYTE B650M AORUS ELITE AX/AM5/mATX Základná doska, AMD B650, AM5, 4x DDR5 DIMM (max. 128GB), 2x M.2, HDMI, DisplayPort, USB typ C, Wi-Fi, mATX

Chipset: AMD B650 Rozmerný formát: Micro ATX Form Factor (24.4cm x 24.4cm) Podpora pre procesory: AMD Ryzen 7000 Series Processors Patičky procesoru: AM5 Pozícia na pamäť: 4 x DDR5 DIMM, Dual channel memory architecture Podpora pre pamäť: DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Max. veľkosť operačnej pamäti: 128 GB (32 GB single DIMM capacity) Podpora pre pamäť typu: non-ECC, XMP Grafické výstupy: (podľa procesoru) *1 x DisplayPort 1.4, maximálny rozlíšenie 3840x2160@144 Hz *1 x HDMI 2.1 port, maximálny rozlíšenie 4096x2160@60 Hz Zvuková karta: Realtek Audio CODEC *2/4/5.1/7.1-channel *Podpora S/PDIF Out Sieťová karta: *Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) *Wi-Fi 6E RZ616 a, b, g, n, ac, ax *Bluetooth 5.2 Rozširujúce sloty: *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) RAID riaditeľ: RAID 0, RAID 1, and RAID 10 SATA: 4 x SATA 6Gb/s connectors M.2: 2 x M.2 Socket 3 connectors USB: *Vnútorné: *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *Externé: *1 x USB Type-C port, with USB 3.2 Gen 2 support *2 x USB 3.2 Gen 2 Type-A ports (červené) *5 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports Vnútorné porty: *1 x 24-pin ATX main power connector *1 x 8-pin ATX 12V power connector *1 x CPU fan header *1 x water cooling CPU fan header *3 x system fan headers *1 x system fan/water cooling pump header *2 x addressable LED strip headers *2 x RGB LED strip headers *1 x CPU cooler LED strip/RGB LED strip header *2 x M.2 Socket 3 connectors *4 x SATA 6Gb/s connectors *1 x front panel header *1 x front panel audio header *1 x USB Type-C header, with USB 3.2 Gen 2x2 support *1 x USB 3.2 Gen 1 header *2 x USB 2.0/1.1 headers *1 x serial port header *1 x THB_U4 add-in card connector *1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) *1 x reset button *1 x reset jumper *1 x Clear CMOS jumper Externé porty: *1 x Q-Flash Plus button *2 x SMA antenna connectors (2T2R) *1 x DisplayPort *1 x HDMI port *1 x USB Type-C port, with USB 3.2 Gen 2 support *2 x USB 3.2 Gen 2 Type-A ports (červené) *5 x USB 3.2 Gen 1 ports *4 x USB 2.0/1.1 ports *1 x RJ-45 port *1 x optical S/PDIF Out connector *2 x audio jacks BIOS: AMI UEFI BIOS, 1 x 256 Mbit flash Stránka výrobcu: http://www.gigabyte.com/Motherboard/B650M-AORUS-ELITE-AX-rev-1x#kf
